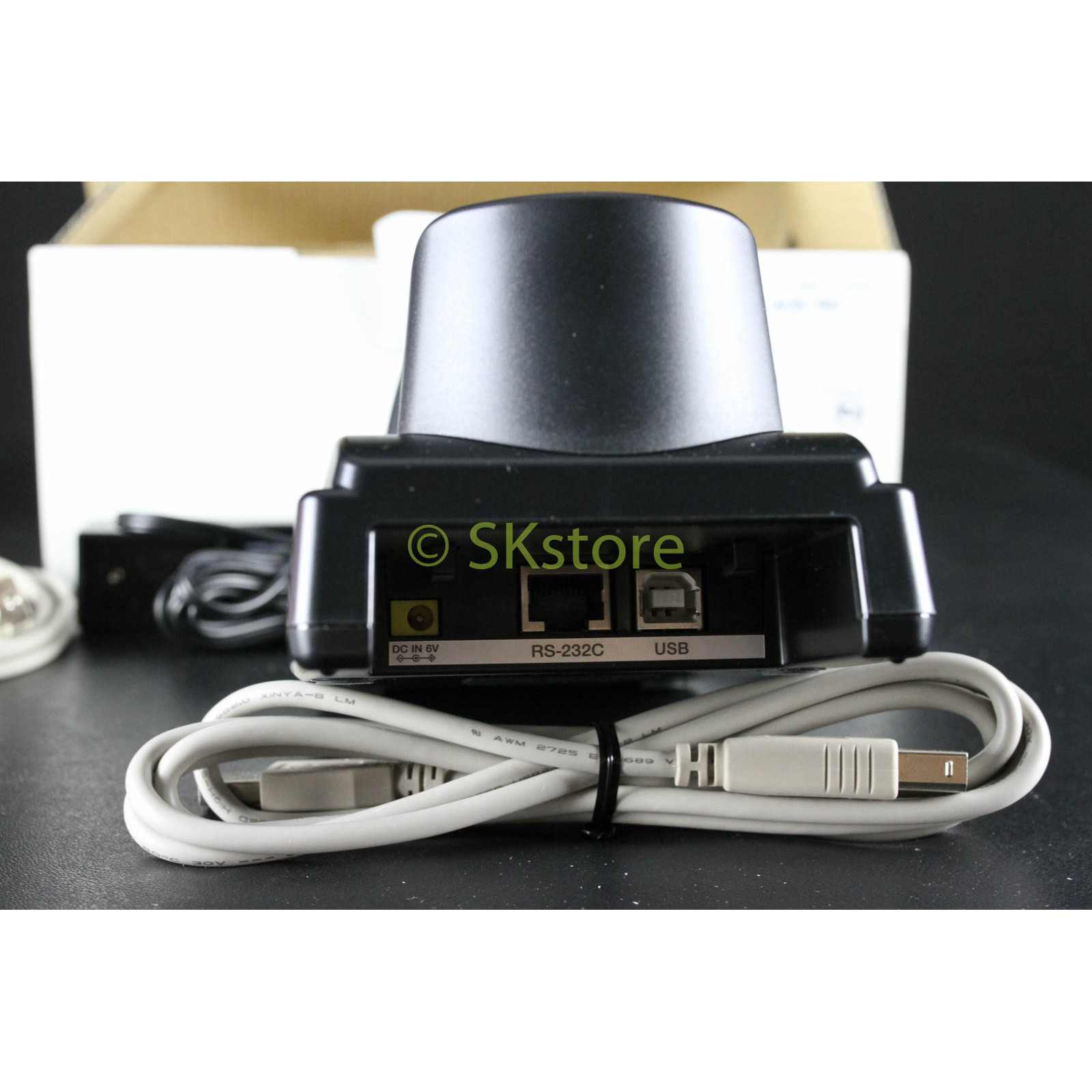

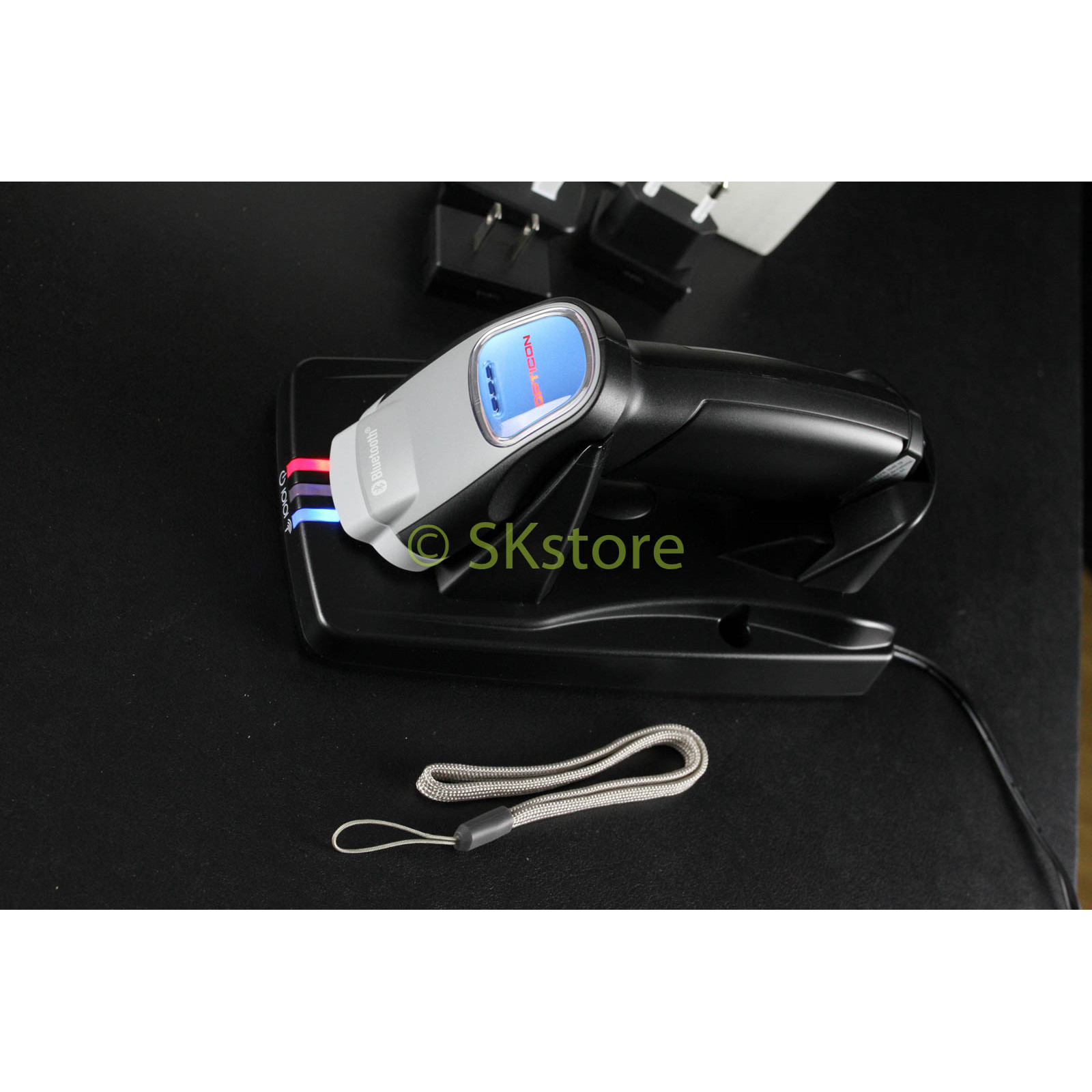

This is a wireless 2D Barcode Scanner with the charging cradle. cradle also has USB and serial connection.

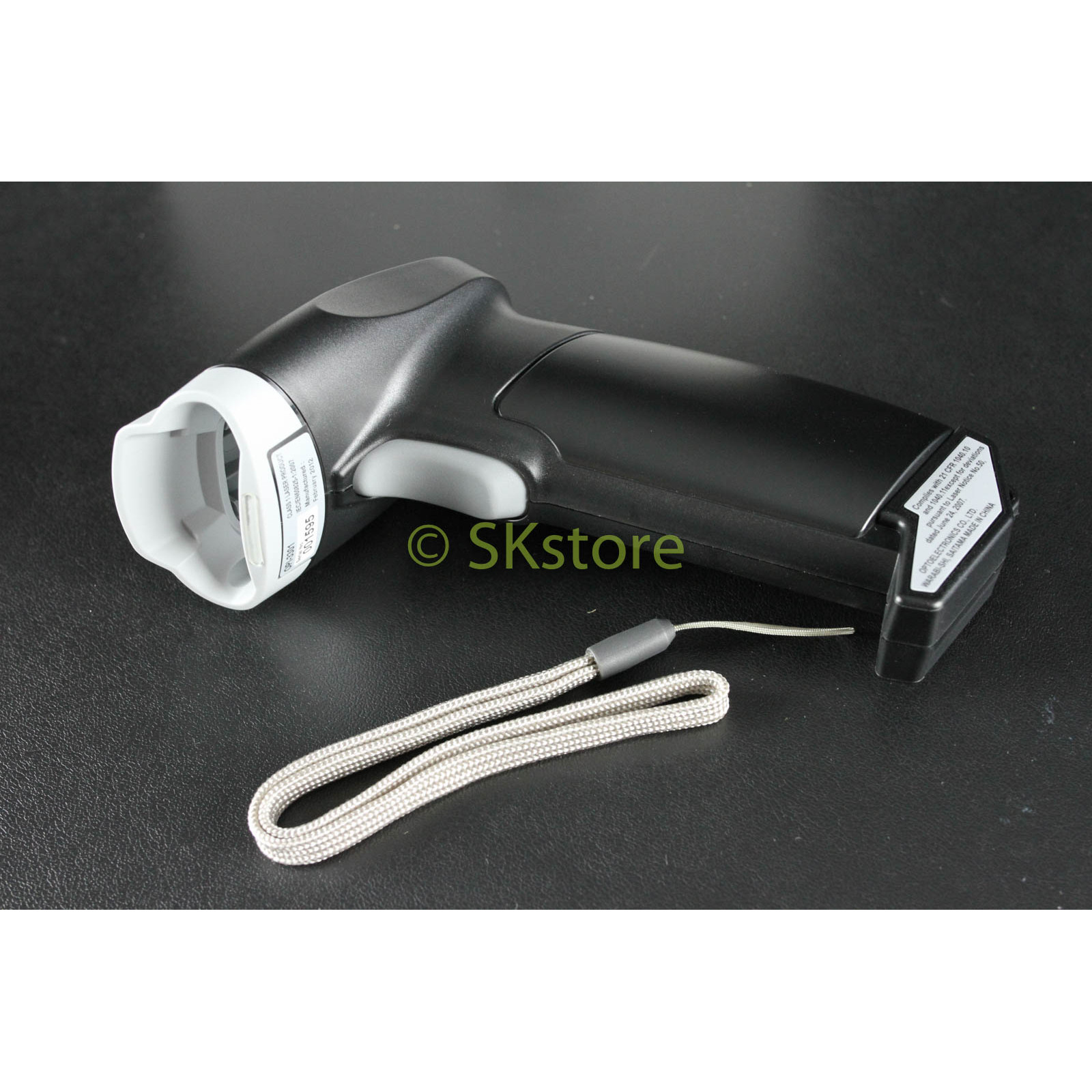

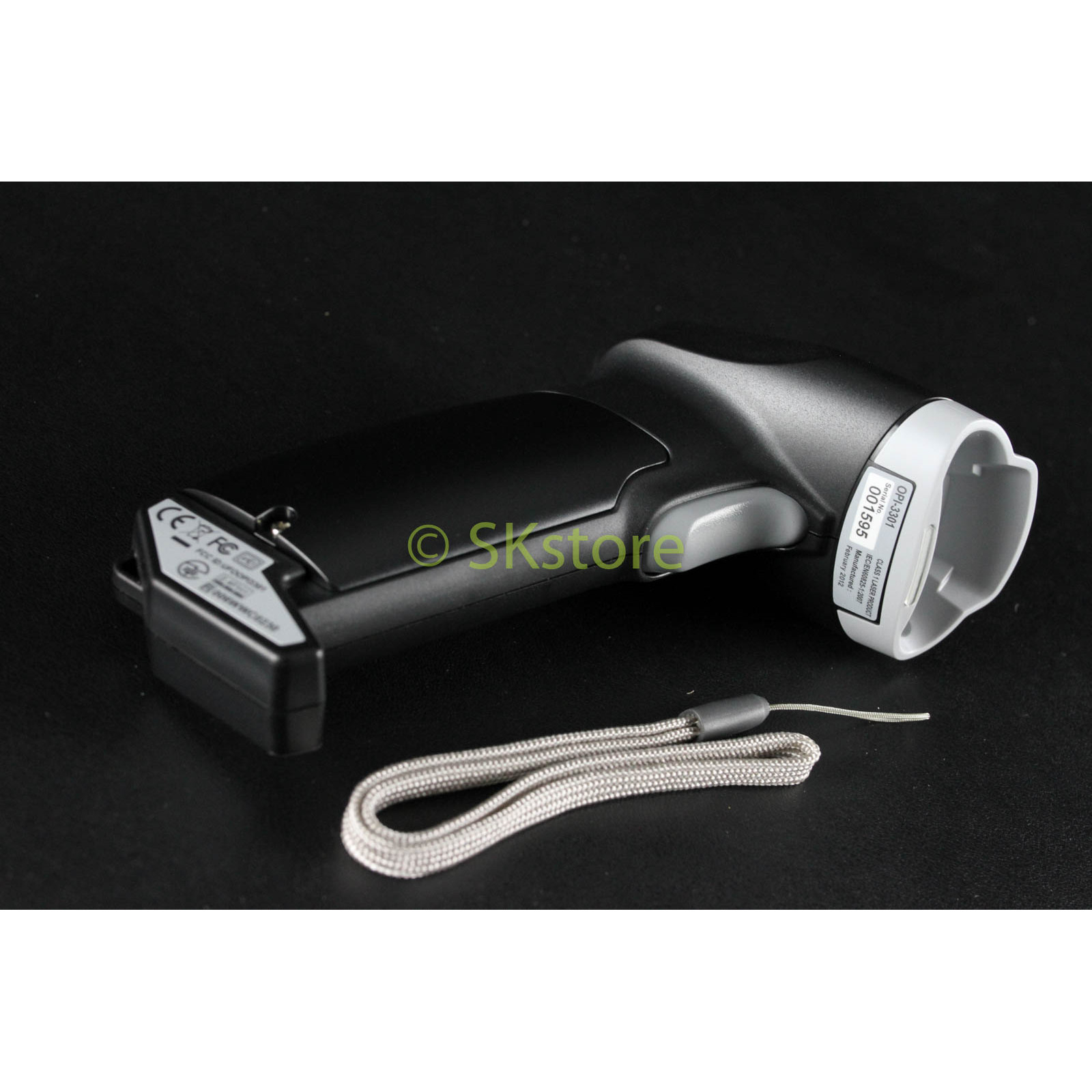

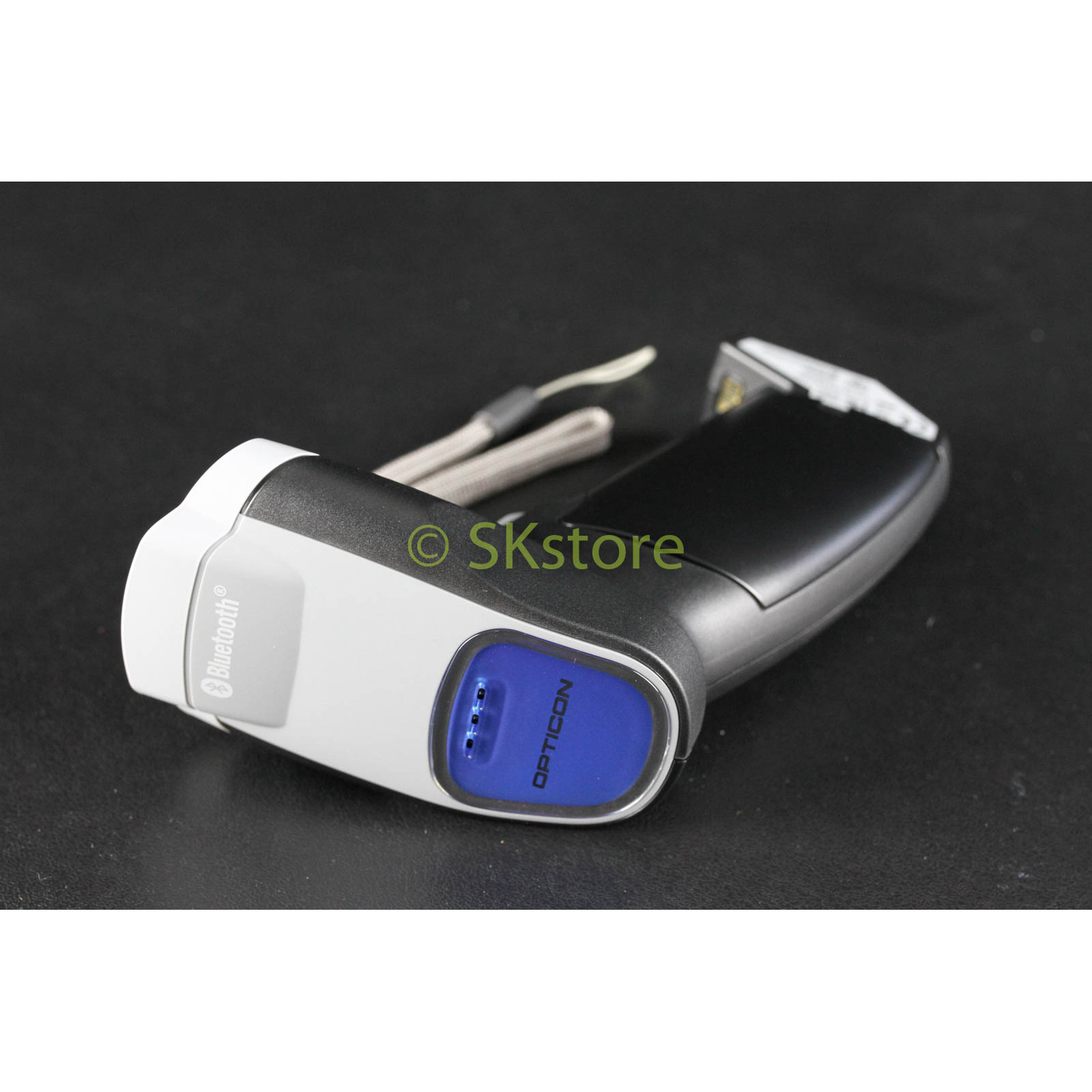

The OPI-3301i is a compact handheld 2D imager using Bluetooth to communicate with other devices. This wireless device is equipped with an aggressive imager providing quick and easy scanning. The lightweight handheld design of the OPI-3301i provides an ergonomic fit for all day use, maximizing comfort during operation. The OPI-3301i is Apple MFi certified.

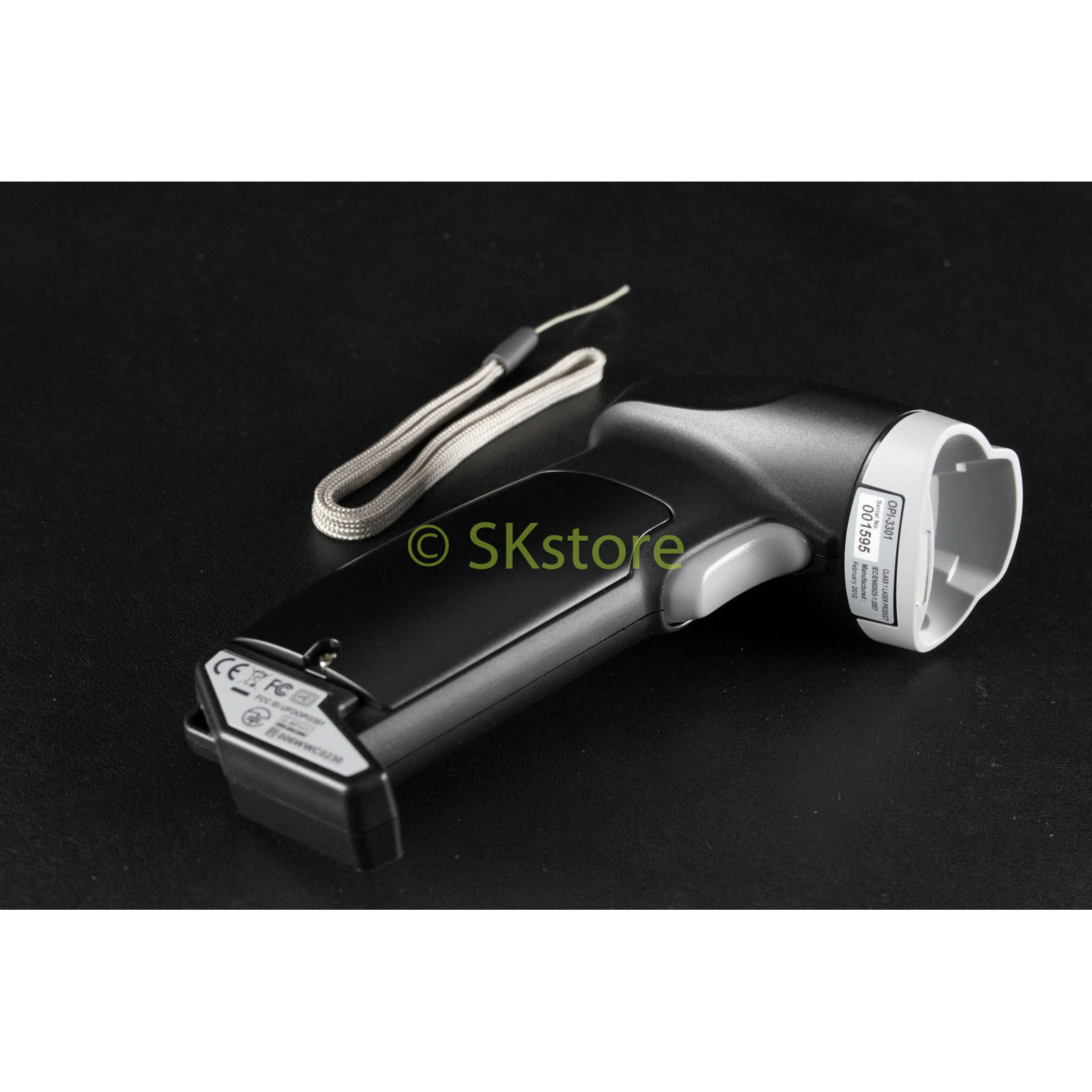

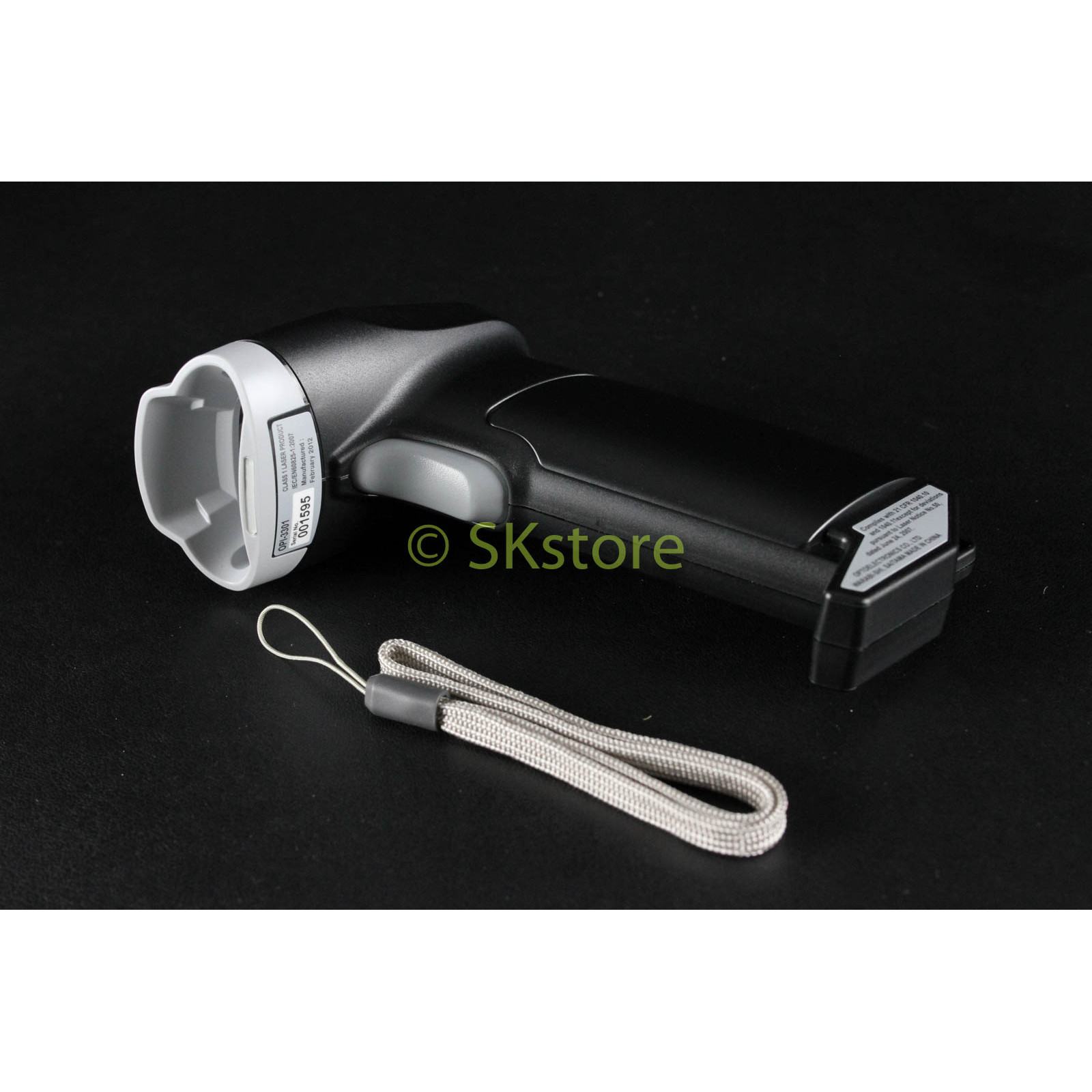

The OPI-3301i is a durable, yet comfortable 2D imager. It weighs only 130 grams, which is light for a gun type imager. This solid scanner withstands drops up to 1.5 meter onto concrete. The imager provides the versatility to read all standard 1D and 2D barcode symbologies from any orientation.
Plug & play
The plug and play ability of the OPI-3301i allows the user to quickly connect and operate the scanner.
SDRAM: 1MB Flash ROM: 1MB
Visual: 1 large LED (red/green/blue) Non-visual: Buzzer
Entry options: 1 scan key
Bluetooth: Ver. 2.1, SPP/HID, output power class 2, range up to 10 m, 1 tot 1 connection, master/slave mode, authentication and encryption

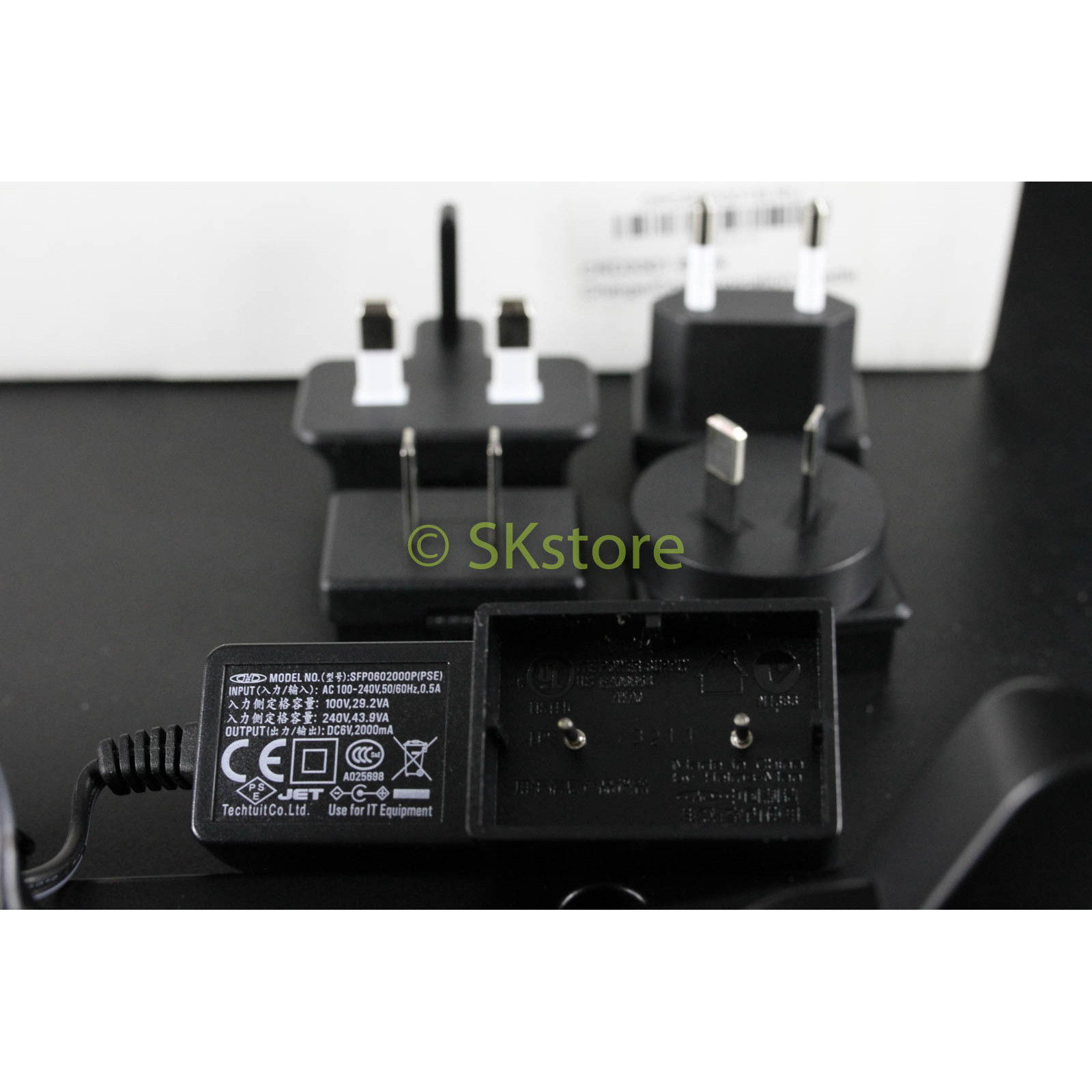

Current consumption: 15mA (stand by), max 330mA Battery: Lithium-ion 3.7V 1100mAh Operating time stand by: Approx 72 hours (with wireless connection) Reading: Approx. 24 hours (1 scan / 5 sec) Charging method: Separate cradle CHG-3201 Battery charging time: Ca. 3 hours (when charged with power supply)
2D imager optics

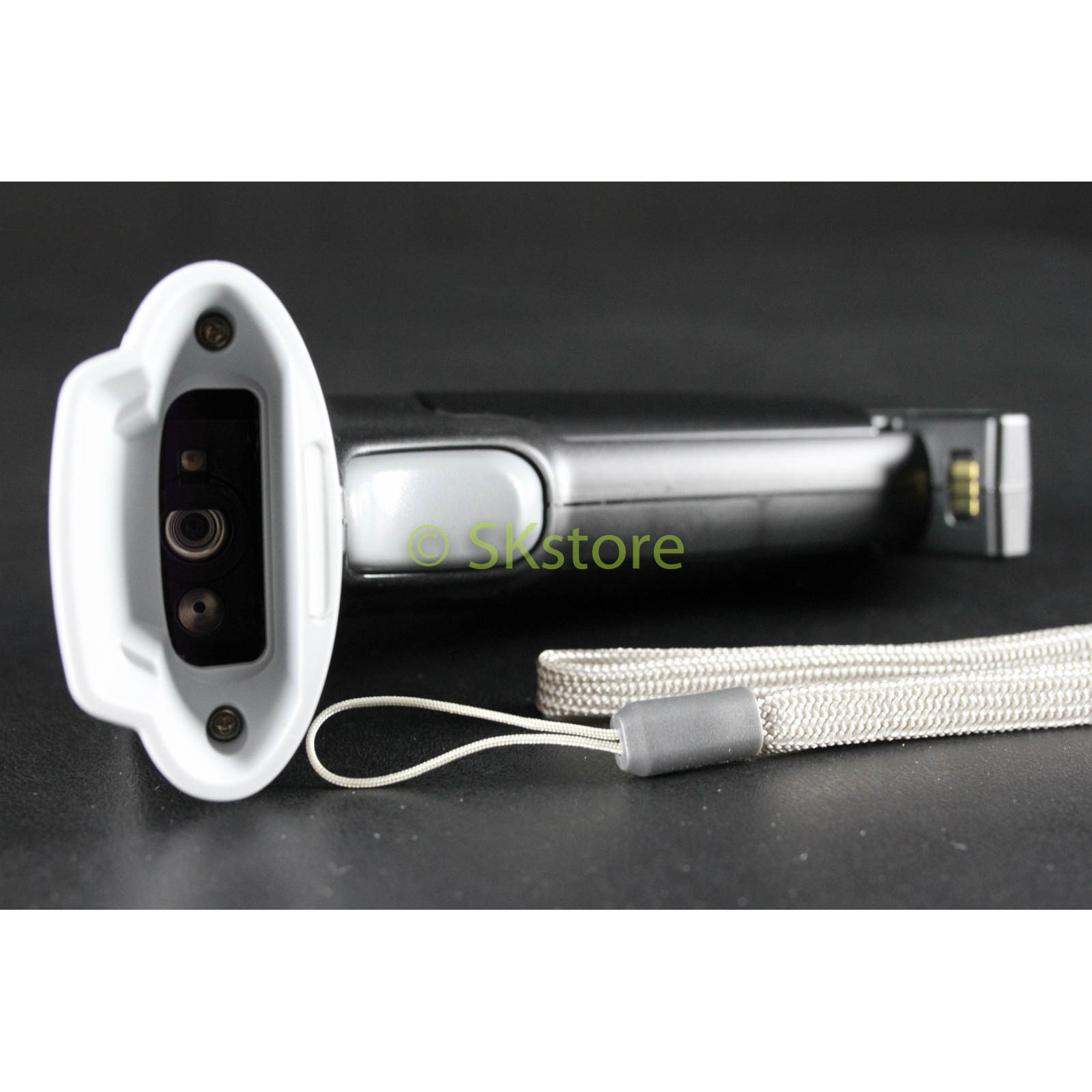

Light source: Aiming laser diode, illumination LEDs Scan method: CMOS area sensor, 752 x 480 pixels, gray scale Scan rate: Up to 60 fps (excl. focusing) Image format: Bitmap, JPEG Reading pitch angle: -50 to 0°, 0 to +50° Reading skew angle: -50 to 0°, 0 to +50° Reading tilt angle: 180° Min. resolution at PCS 0.9: 0.1 mm / 3.94 mil Min. PCS value: 0.20 Field of view: Horizontal 40°, Vertical 26° Depth of field at Code 39: 60 - 95 mm / 2.36 - 3.74 in (0.127 mm / 5 mil), 45 - 185 mm / 1.77 - 7.28 in (0.254 mm / 10 mil), 50 - 250 mm / 1.97 - 9.84 in (0.5 mm / 208 mil) Depth of field at QR Code: 70 - 95 mm / 2.76 - 3.74 in (0.169 mm / 6.65 mil) 35 - 155 mm / 1.38 - 6.10 in (0.254 mm / 10 mil)
Barcode (1D): JAN/UPC/EAN incl. add on, Codabar/NW-7, Code 11, Code 39, Code 93, Code 128, GS1-128 (EAN-128), GS1 DataBar (RSS ), IATA, Industrial 2of5, Interleaved 2of5, ISBN-ISSN -ISMN, Matrix 2of5, MSI/ Plessey, S-Code, Telepen, Tri-Optic, UK/Plessey Postal code: Chinese Post, Intelligent Mail Barcode, Korean Postal Authority code, POSTNET 2D code: Aztec Code, Aztec Runes, Chinese Sensible code, Codablock F, Composite codes, Data Matrix (ECC200/EC0-140), Maxi Code (mode 2~5), MicroPDF417, Micro QR Code, PDF417, QR code
Temperature in operation: -0 to 50 °C / 32 to 122 °F Temperature in storage: -20 to 60 °C / -14 to 140 °F Humidity in operation: 20 - 85% (non-condensing) Humidity in storage: 20 - 85% (non-condensing) Ambient light immunity: Fluorescent 10,000 lx max, Direct sun 100,000 lx max, Incandescent 10,000 lx max Drop test: 1.5 m / 5 ft drop onto concrete surface Vibration test: 10 - 100 Hz with 2G for 1 hour Protection rate: IP 42
Dimensions (w x h x d): 56 x 135 x 113 mm / 2.20 x 5.32 x 4.45 in Ca. 132 g / 4.5 oz (incl. battery) Case: ABS, Black or White
Regulatory & Safety
Product compliance: CE, FCC, VCCI, MFi, RoHS, IEC 62471, IEC 60950-1

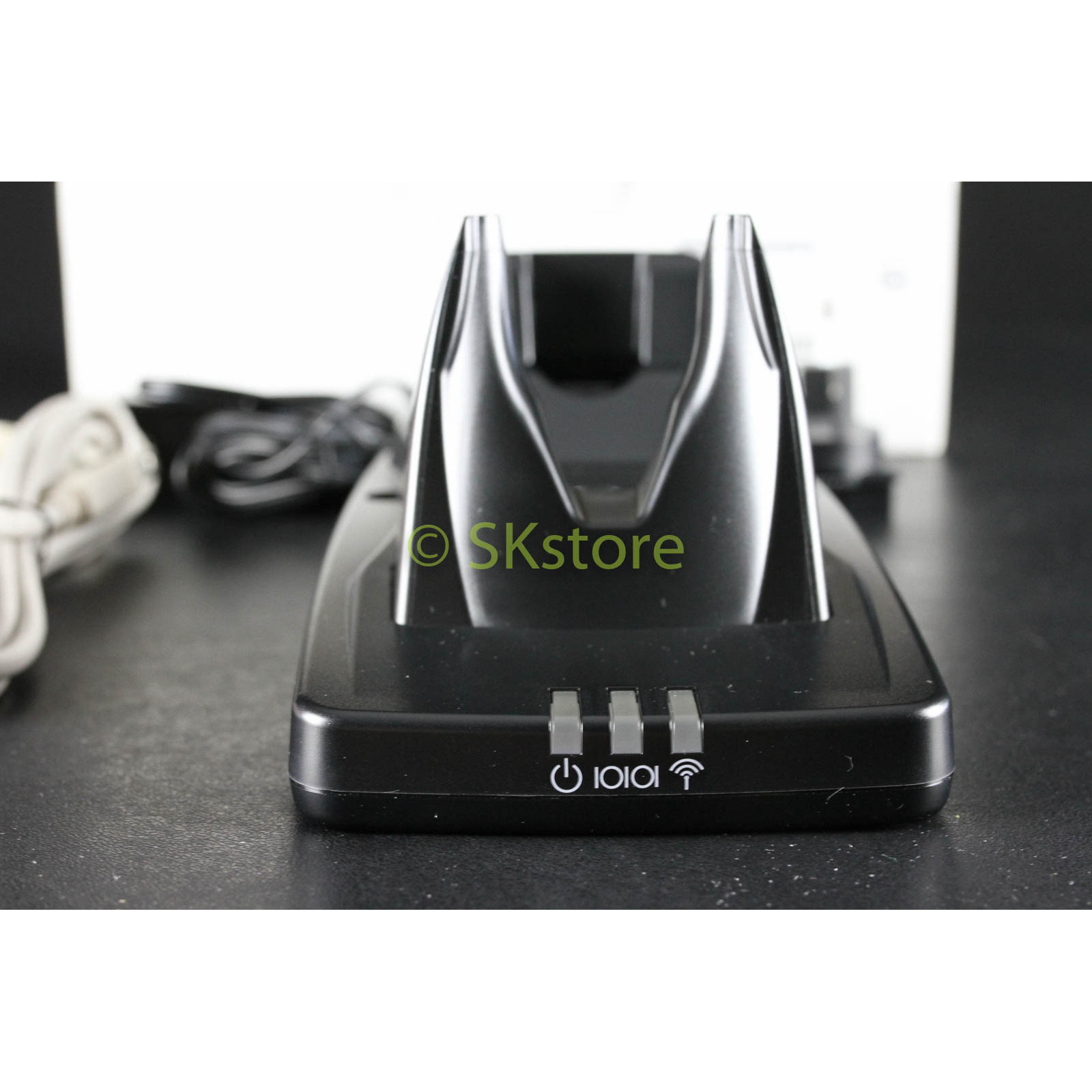

CHG-3201 Cradle: charging OPA-3201: Bluetooth dongle.

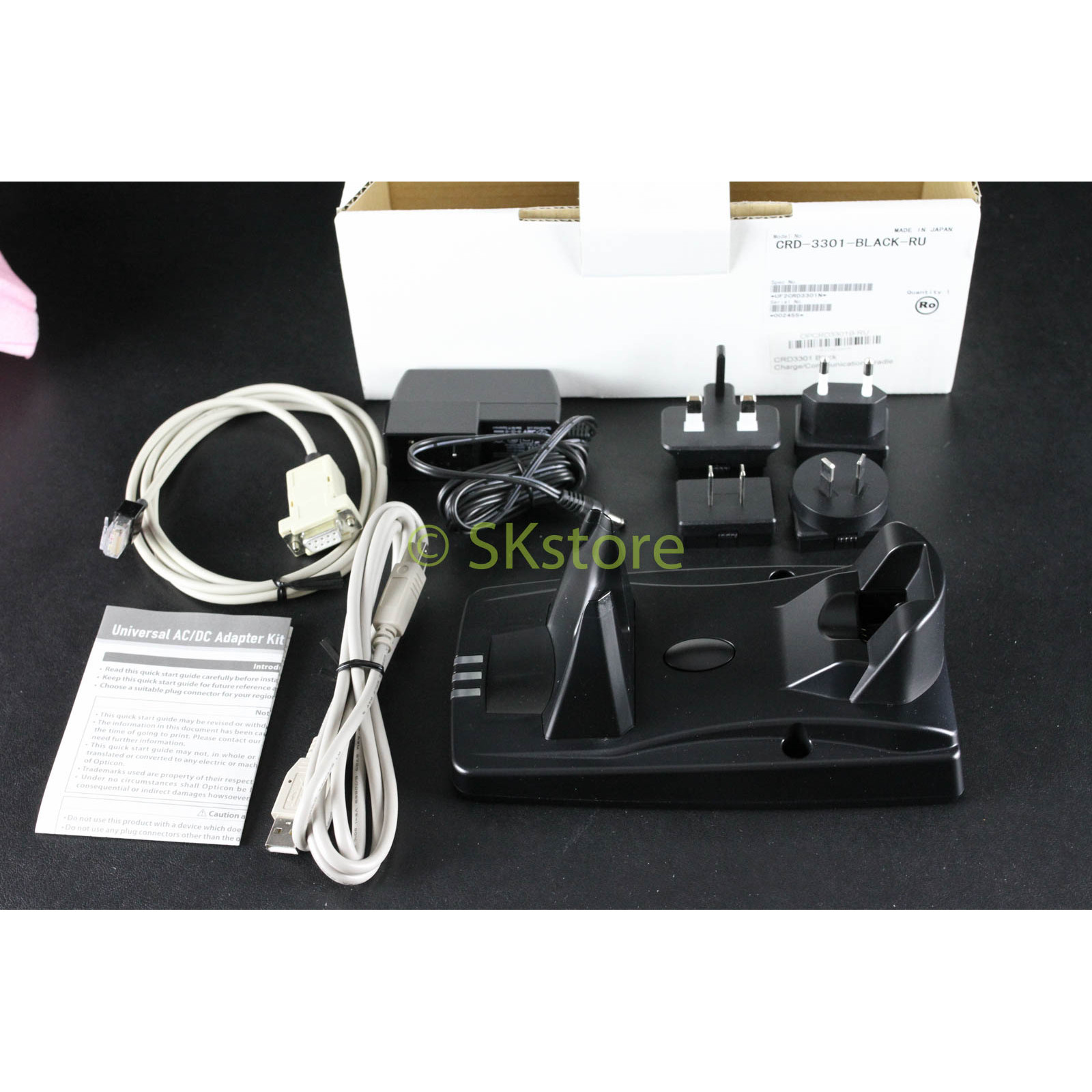

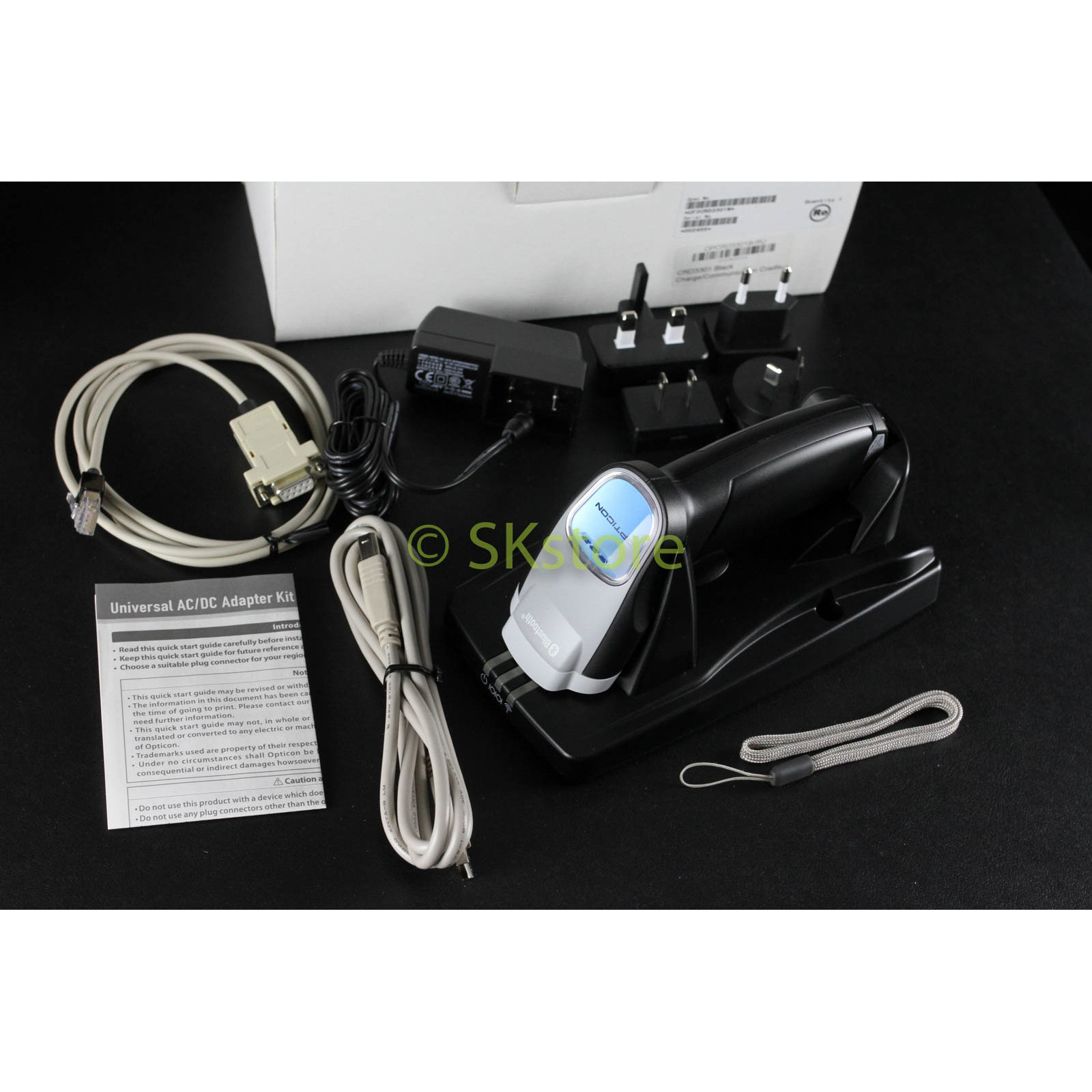

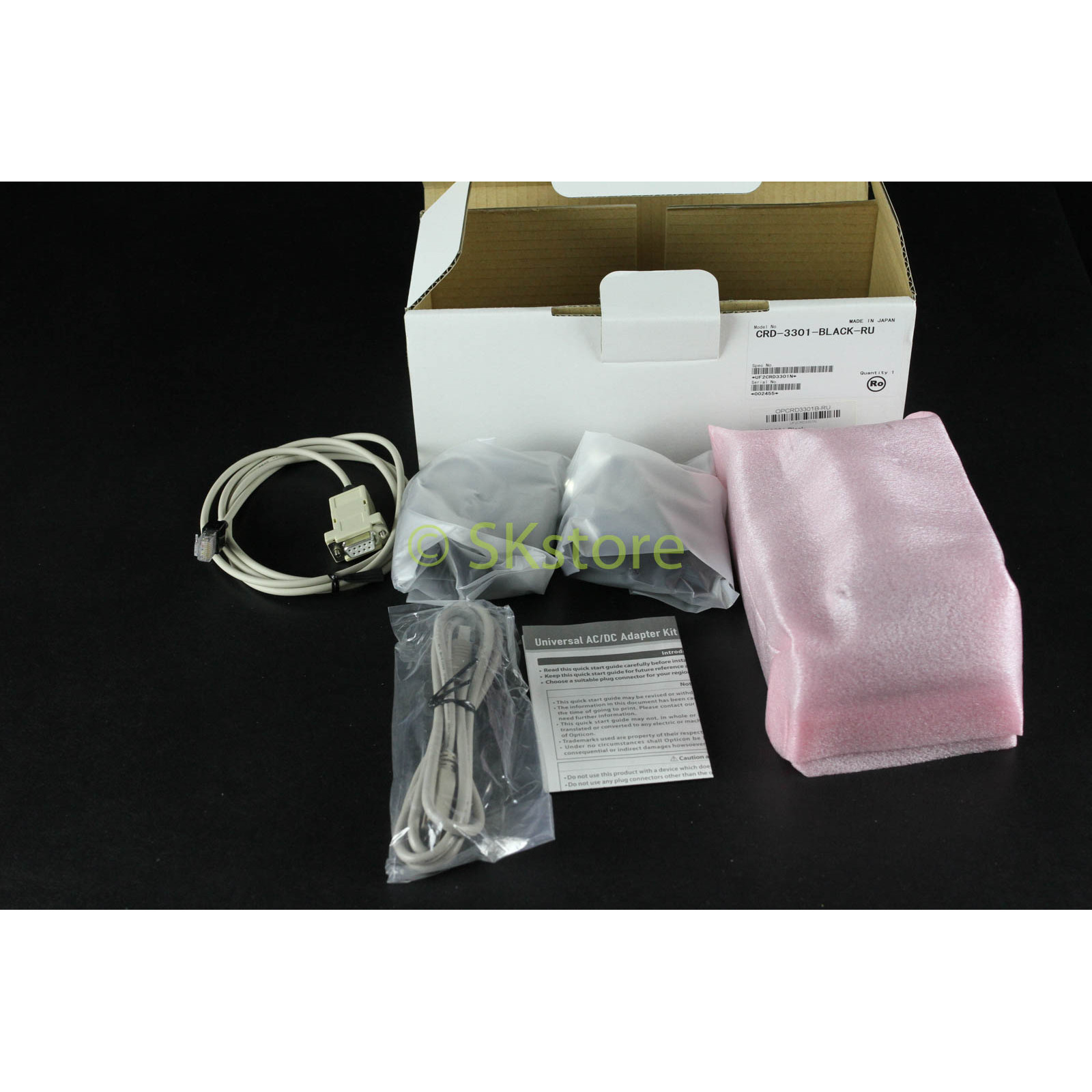

This is the KIT version, so it does come with the cradle.
Opticon OPI-3301 2D Scanner & Cradle Kit
- Brand: Opticon
- Product Code: OPI3301BKIT-RU
- Availability: Out Of Stock
