This Cabled 2D Barcode Scanner is ideal for Scanning barcode off Mobile Phones Screens.

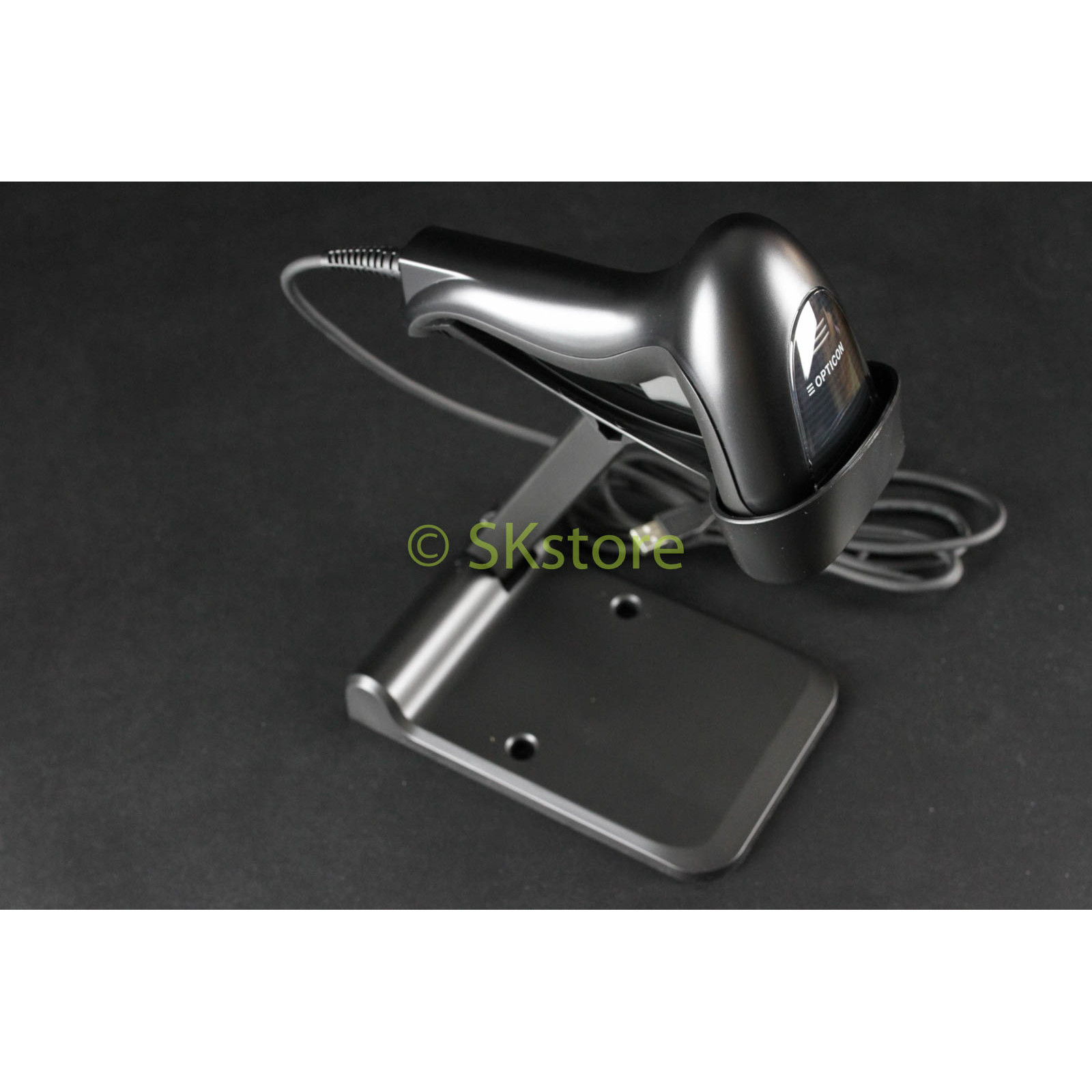

The L-50X is a rugged pistol style 2D CMOS imager barcode scanner supplied as a complete kit including hands free stand to allow users the option of hands free scanning or in the hand scanning. We have developed the L-50X with a bright LED aiming function for simple and quick operation and an editiing function.

To compliment its advanced performance, the L-50X is capable of withstanding drops of 1.5 meters to concrete and is supported by a 2 year warranty.

Typical Applications for the L-50X are:

• Retail Scanning of GS1 Data Matrix codes at POS
• E-coupon redemption on Mobile phones
• Health care applications for wrist band scanning and patient management

Custom logo display area

The L-50 contains a unique 'custom logo display' area. Add your text and image to design your own display. Unprinted/transparent areas will be illuminated in the round corner when using the scanner.

Operating indicators

CPU: ARM-926EJ-S 400 MHz Visual: 1 white LED Non-visual: Buzzer

Operating keys

Entry options: 1 scan key

Communication

RS232: D-SUB9 pin (with external power supply) Keyboard Wedge: PS/2 (with external power supply) USB: Ver. 2.0, HID/COM, USB-A connector

Power

Voltage requirement: 6V ± 5% (Keyboard Wedge and RS232) Current consumption: Max. 210mAh

2D Imager Optics

Light source: Aiming green LED Scan method: CMOS area sensor, 752 x 480 pixels Scan rate: Up to 60 fps Trigger mode: Manual, auto-trigger, stand detection Reading pitch angle: -65 to 0°, 0 to +65° Reading skew angle: -65 to 0°, 0 to +65° Reading tilt angle: 360° Curvature: R>16 mm (EAN10), R>20 mm (EAN12) Min. resolution at PCS 0.9: 0.127 mm / 5 mil Min. PCS value: 0.9 Field of view: Horizontal 40.6°, Vertical 26.4° Depth of field at Code 39: 45 - 80 mm / 1.77 - 3.15 in (0.127 mm / 5 mil), 20 - 160 mm / 0.79 - 6.30 in (0.254 mm / 10 mil), 35 - 235 mm / 1.38 -9.25 in (0.508 / 20 mil), at QR Code: 50 - 75 mm / 1.97 - 2.95 in (0.212 mm / 8.4 mil), 10 - 140 mm / 0.39 - 5.51 in (0.381 mm / 15 mil) at Data Matrix: 30 - 95 mm /1.18 - 3.74 in (0.254 mm / 10 mil)

Supported Symbologies

Barcode (1D): JAN/UPC/EAN incl. add on, Codabar/NW-7, Code 11, Code 39, Code 93, Code 128, GS1-128 (EAN-128), GS1 DataBar (RSS), GS1 DataBar Limited, GS1 DataBar Expanded, Code 11, IATA, Industrial 2of5, Interleaved 2of5, ISBN-ISSN-ISMN, Matrix 2of5, MSI/Plessey, UK/Plessey, S-Code, Telepen, Tri-Optic, UK/Plessey Postal code: Chinese Post, Intelligent Mail Barcode, Korean Postal Authority code, POSTNET PLANET, Japan Postal, Netherland KIX Code, UK Postal, Australian Postal Code 2D code: Aztec Code, Aztec Runes, Chinese Sensible code, Codablock F, Data Matrix (ECC 200/ECC-000-140), Maxi Code, MicroPDF417, Micro QR Code, PDF417, QR code

Durability

Temperature in operation: 0 to 50 °C / 32 to 122 °F Temperature in storage: -20 to 60 °C / -4 to 140 °F Humidity in operation: 5 - 90% (non-condensing) Humidity in storage: 5 - 90% (non-condensing Ambient light immunity: Fluorescent 10,000 lx, Direct sun 100,000 lx, Incandescent 10,000 lx Drop test: 1.5 m / 5 ft drop onto concrete surface Vibration test: 10 - 100 Hz with 2G for 1 hour Protection rate: IP 42

Physical

Dimensions (w x h x d): 75.4 x 169.5 x 121.2 mm / 2.97 x 6.67 x 4.77 in Dimensions stand (w x h x d): 120 x 294 x 180 mm / 4.72 x 11.57 x 7.09 in (excl. scanner) Weight body: Ca. 150 g / 5.3 oz (excl. cable) Weight stand: Ca. 335 g / 11.8 oz Case: ABS/PC, Black or White

Regulatory & Safety

Product compliance: CE, FCC, VCCI Class B, RoHS, IEC 62471-1:2006, EN55022, EN55024

Enclosed items

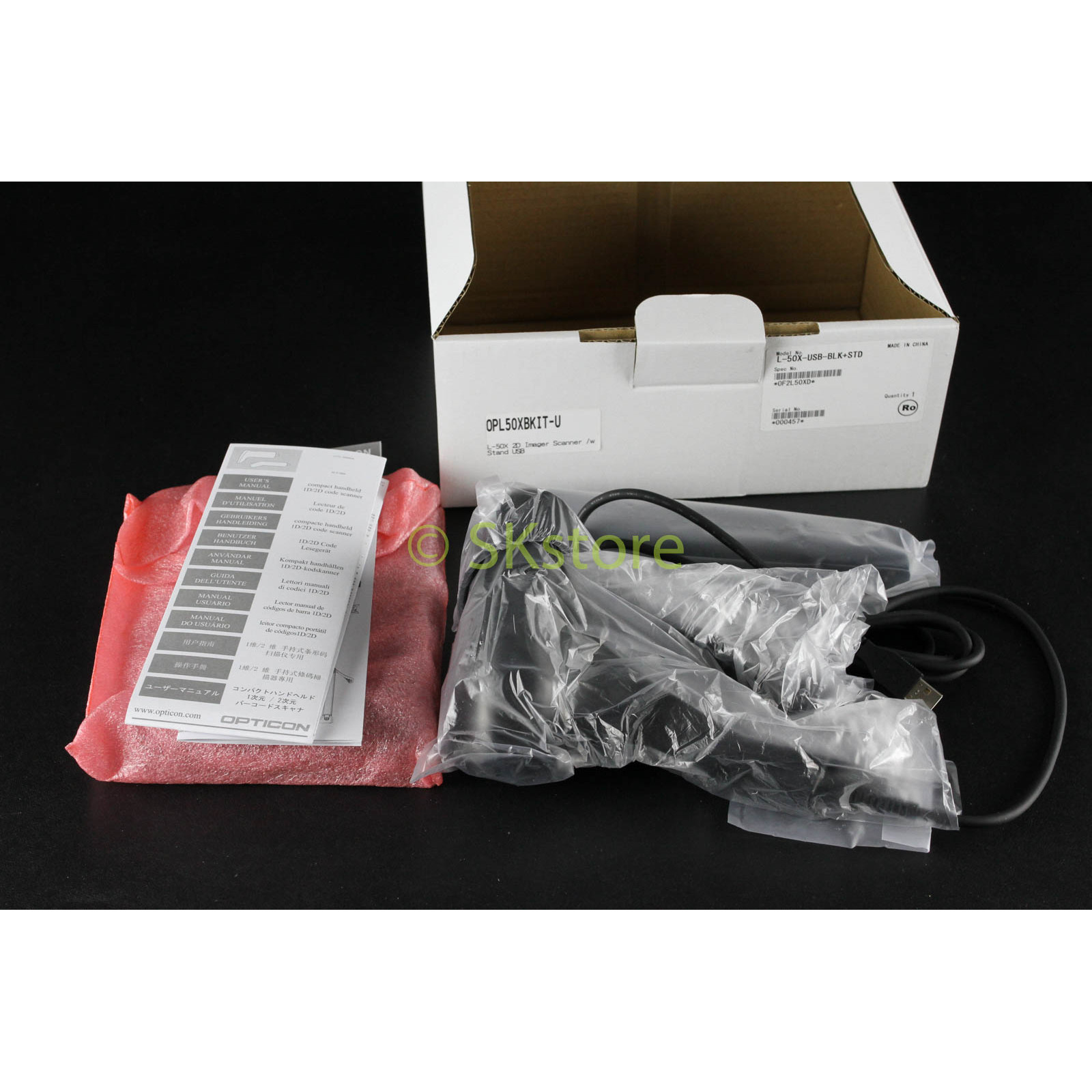

Power supply 6V/2A (for RS232 and Keyboard Wedge), Stand

Models

Interface versions: RS232, Keyboard Wedge, USB, This is the USB Version
