The UniFi In-Wall Wi-Fi AP is design to retrofit into existing single-gang ethernet outlet. They also support PoE Passthrough to power other device connected to it.
The UniFi In-Wall Wi-Fi AP is designed to be powered by an 802.3af/at Alternative-A POE supply (not included). Alternative-A means the power is delivered on pins 1,2,3,6.
The table below gives the complete picture of what will and will not power the UAP-IW.
Option | Pins | 802.3af/at | Passive | Example |
---|---|---|---|---|
Alternative-A | (1,2+) (3,6-) | Yes | Yes | Ubiquiti UniFi Switches , Ubiquiti EdgeSwitches , most 802.3af/at switches |
(1,2-) (3,6+) | Yes | Yes | (rare) | |
Alternative-B | (4,5+) (7,8-) | No | Ubiquiti passive POE injectors, Allied Telesis 802.3af switches | |
(4,5-) (7,8+) | No | (rare) |
It will work with:
- Ubiquiti UniFi Switches
- Ubiquiti EdgeSwitches
- Any other brand of 802.3af/at POE switch that uses Alternative-A. Most do, but not all.
It will not work with:
- Most simple 48V passive POE supplies, as these usually use Alternative-B (pins 4,5,7,8)
- Most 802.3af/at Mid-Span Injectors, as these usually use Alternative-B (pins 4,5,7,8)
- 802.3af/at POE Switches that only use Alternative-B. These are not common, but at least one brand make Alternative-B POE Switches: Allied Telesis.
Mounting
We have measured the mounting holes, and they are compatible with Australian Standard power point mounts.

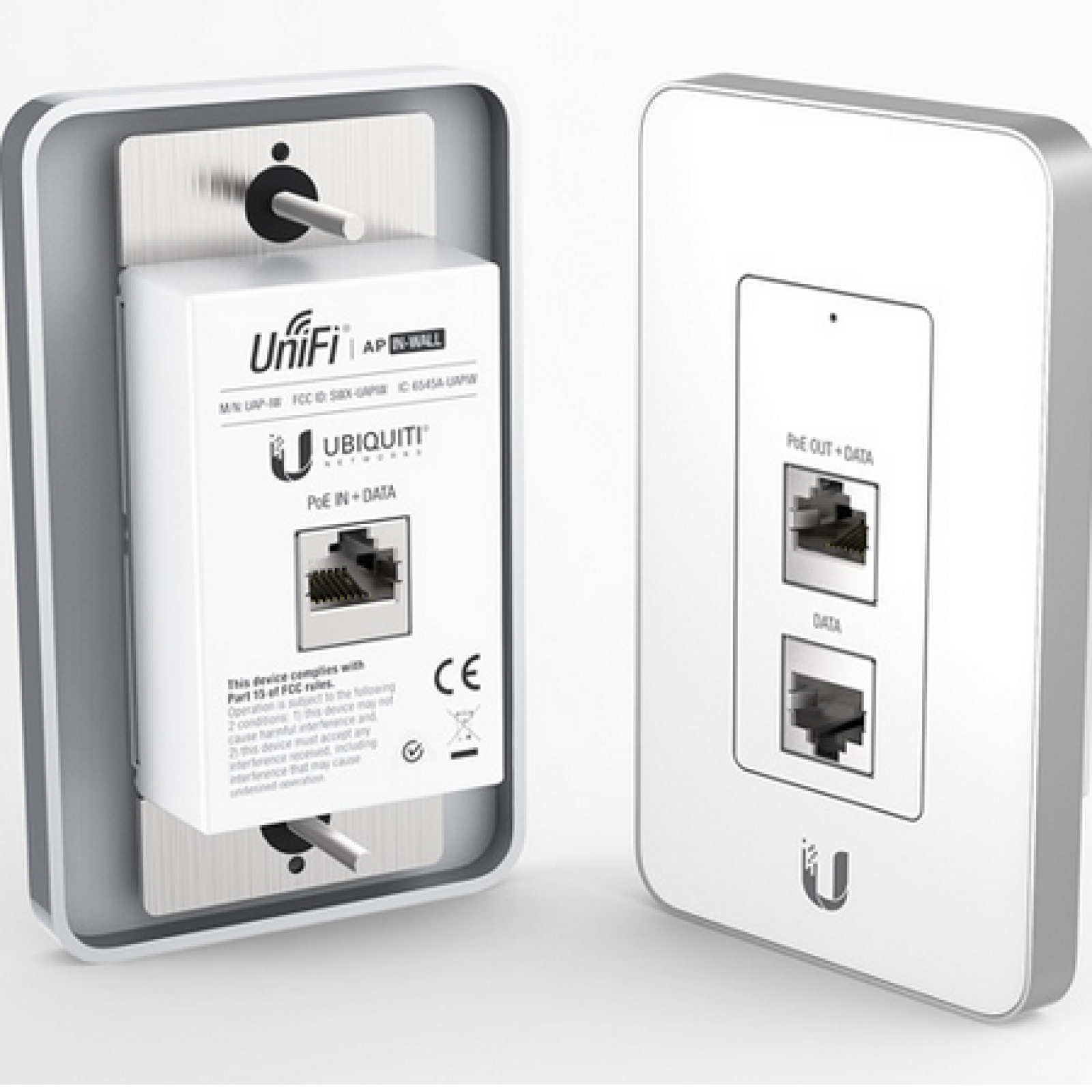

Ubiquity UniFi In-Wall WiFi Access Point
- Brand: Ubiquity
- Product Code: UAP-IW
- Availability: Out Of Stock
-
$105.00
