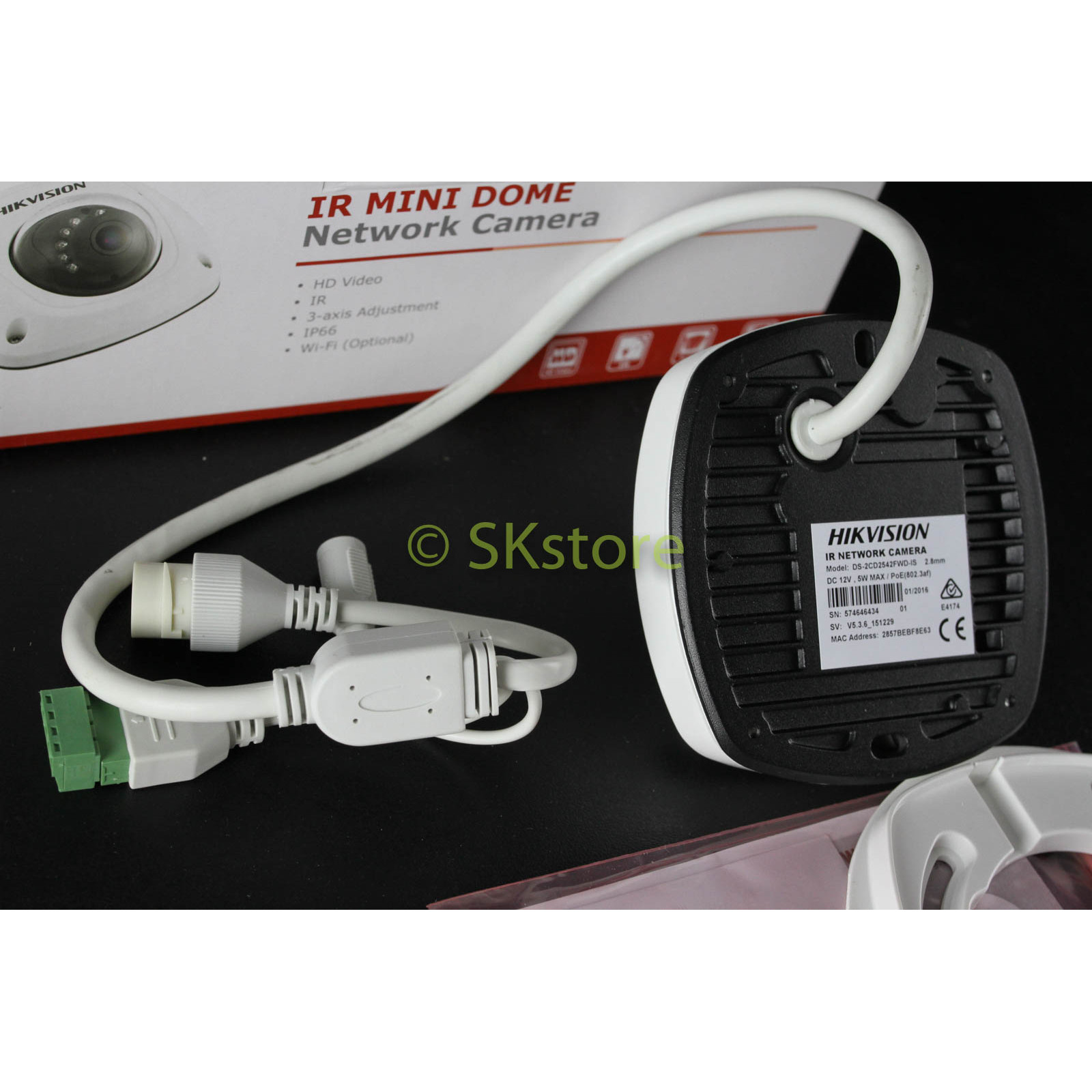

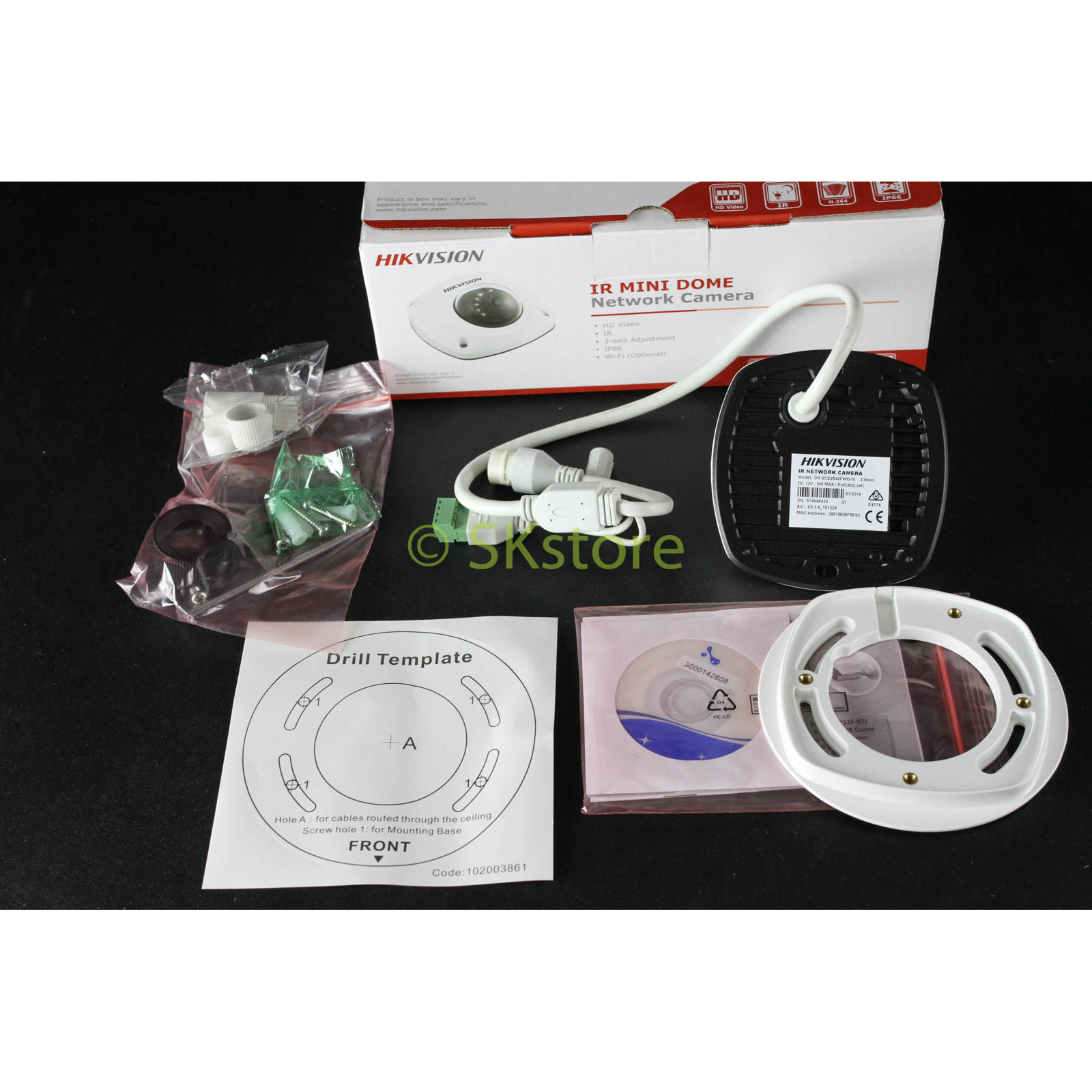

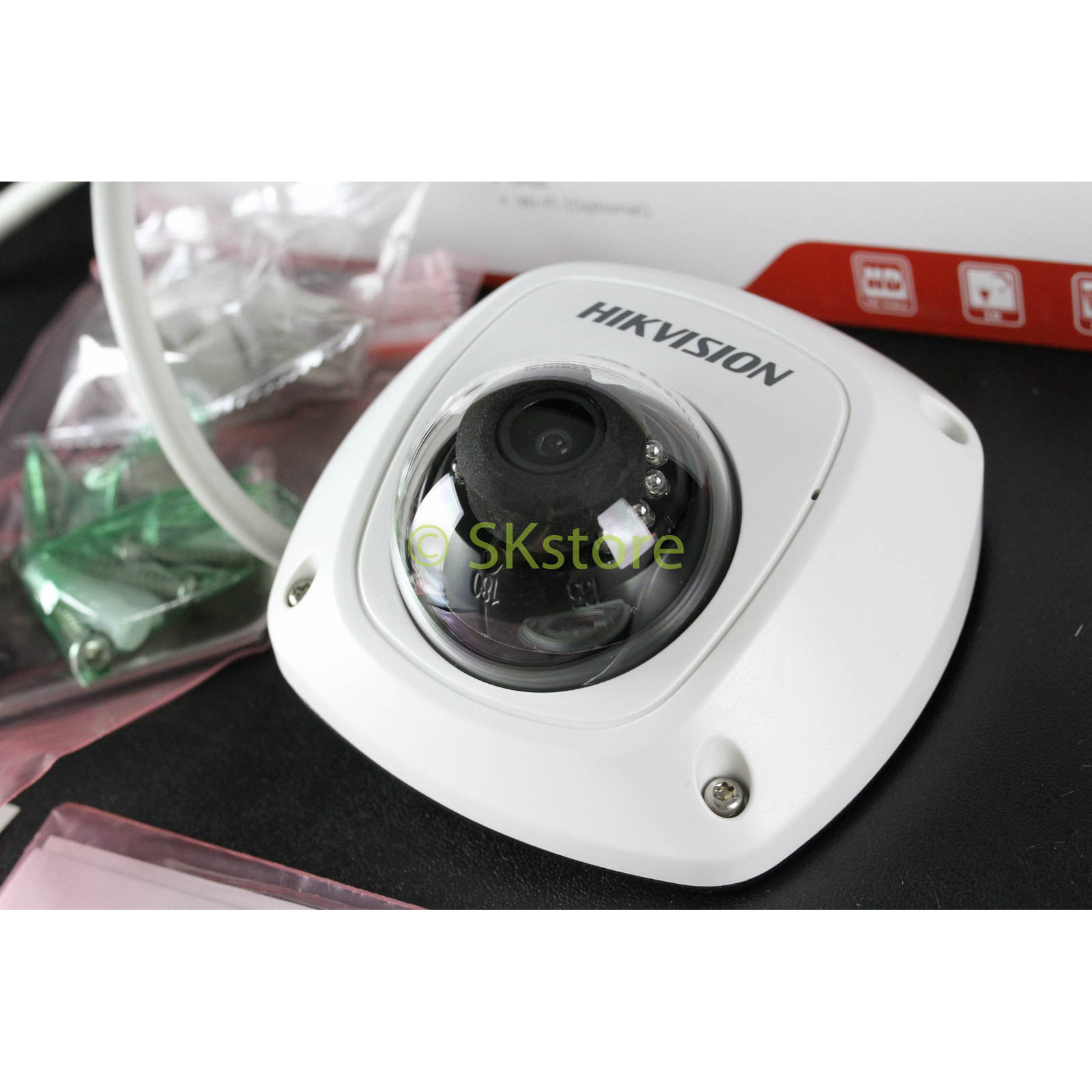

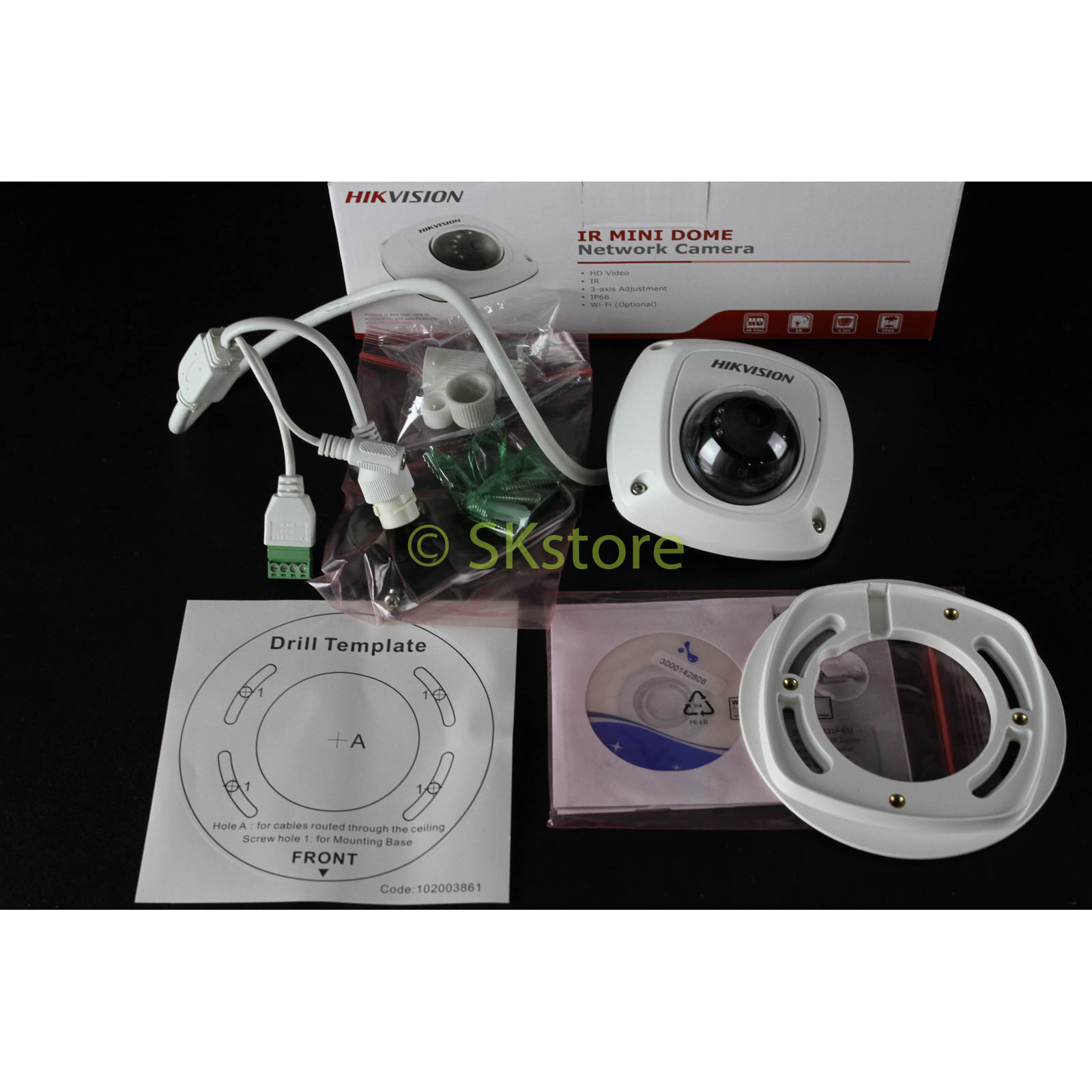

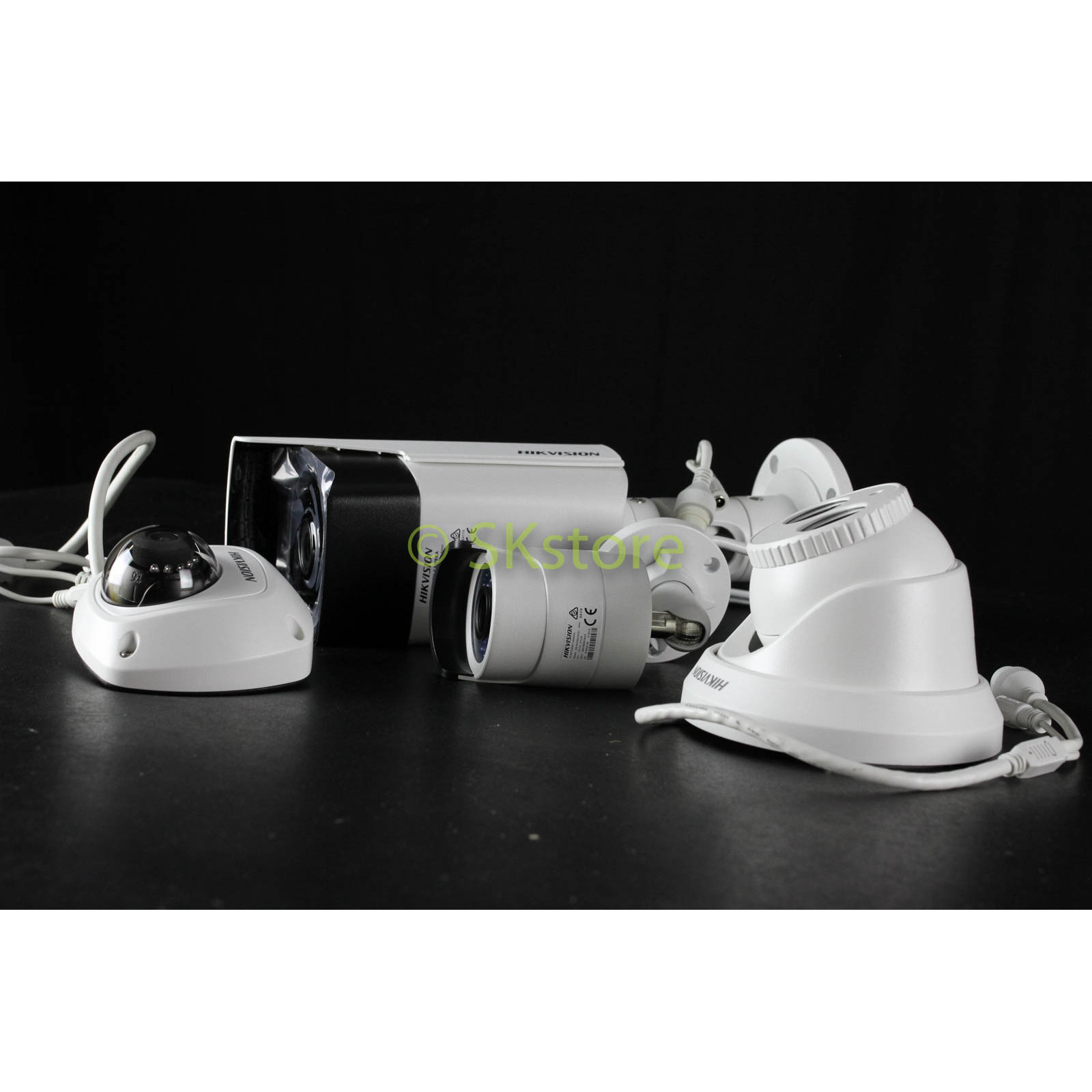

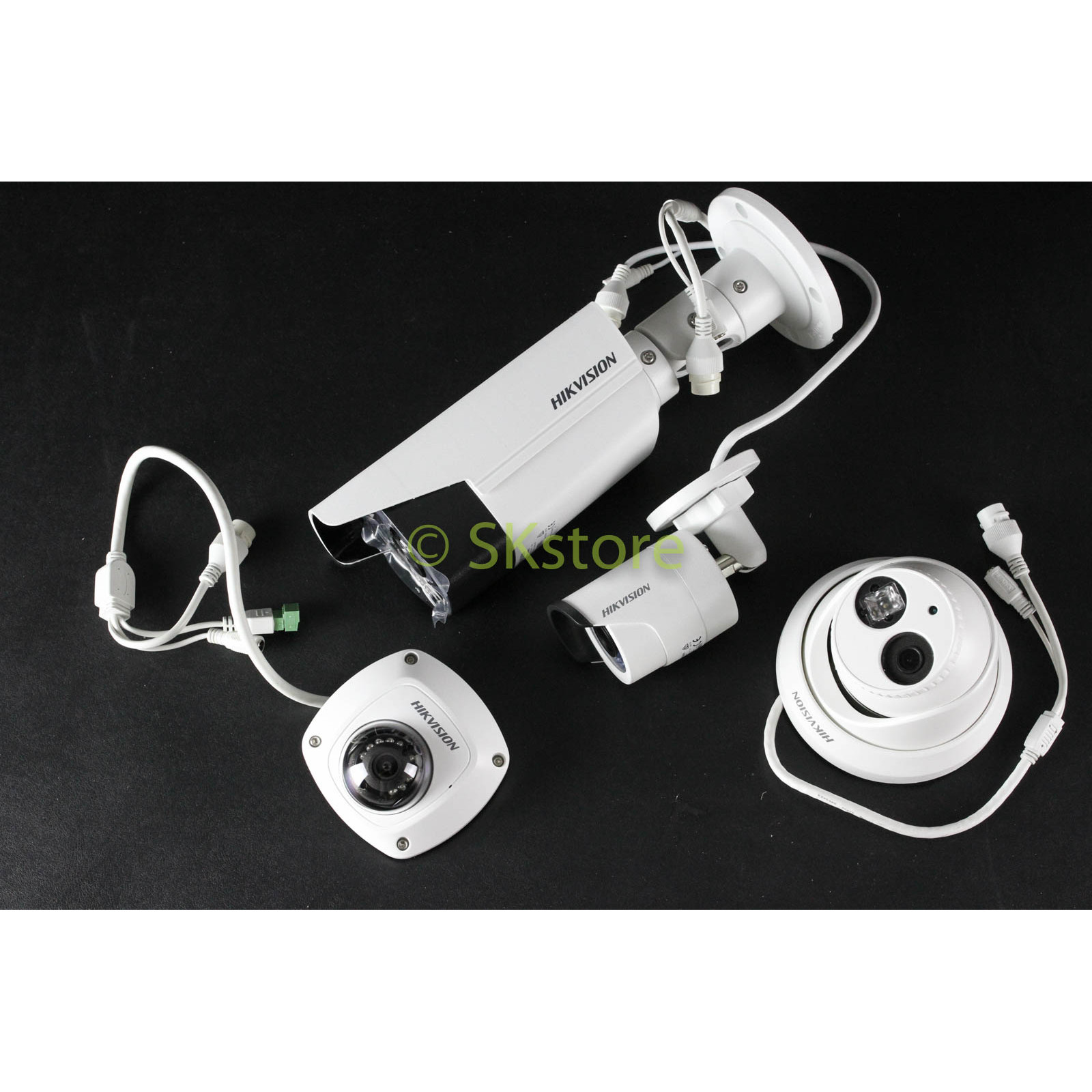

This Include the optional Built-in microphone, Audio Output and Alarm IO. you don't appreciate how small this dome camera is until you see it in real life! with the included microphone, 120Db WDR, POE, this is the perfect feature packed small size IP Camera .
Those are sourced locally using Authorised Distribution Channel. They are not grey imports. This is to guarantee that there will be no issues with firmware upgrade and warranty. Beware of other sellers that are selling those for cheaper, they may be grey import.
Part Number: HIK-2CD2542FWIS4
Highlights
- Up to 4 megapixel high resolution
- Full HD1080p video
- Dual video streams
- 2.8mm/4mm/6mm fixed lens
- 120dB Wide Dynamic Range
- 3D Digital Noise Reduction
- 3-axis adjustment
- DC12V & PoE
- Support H.264+
- Up to 10m IR range
- IP66 weather-proof protection
- IK08 vandal-proof protection
- -S: Built-in microphone, Audio Output, Alarm IO
- -W: Built-in Wi-Fi
- Mobile Monitoring via EZVIZ P2P or iVMS-4500
Camera | ||
---|---|---|
Image Sensor: | | | 1/3" Progressive Scan CMOS |
Min. Illumination: | | | 0.01Lux @ (F1.2, AGC ON), 0 Lux with IR |
Shutter time: | | | 1/3 s to 1/10,000 s |
Lens: | | | 2.8mm, 4mm, 6mm @ F2.0 |
Lens Mount: | | | M12 |
Adjustment Range: | | | Pan: -30° ~ 30°, Tilt: 0 ~ 75°, Rotation: 0 ~ 360° |
Day& Night: | | | IR cut filter with auto switch |
Wide Dynamic Range: | | | 120 dB |
Digital noise reduction: | | | 3D DNR |
Compression Standard | ||
Video Compression: | | | H.264/MJPEG/H.264+ |
H.264 code profile: | | | Main Profile |
Video bit rate: | | | 32Kbps~16Mbps |
Audio Compression: | | | -S: G.711/G.722.1/G.726/MP2L2 |
Audio bit rate: | | | 64Kbps(G.711) / 16Kbps(G.722.1) / 16Kbps(G.726) / 32-128Kbps(MP2L2) |
Dual Stream: | | | Yes |
Image | ||
Max. Image Resolution: | | | 2688 × 1520 |
Frame Rate: | | | 50Hz: 20fps (2688×1520), 25fps(1920×1080), 25fps(1280×720) 60Hz: 20fps (2688×1520), 30fps (1920×1080), 30fps(1280×720) |
Image Settings: | | | Rotate Mode, Saturation, Brightness, Contrast, Sharpness adjustable by client software or web browser |
BLC: | | | Yes, zone configurable |
ROI: | | | Support |
Network | ||
Network Storage: | | | NAS (Support NFS,SMB/CIFS), ANR |
Alarm Trigger: | | | Line Crossing, Intrusion Detection, Motion detection, Dynamic analysis, Tampering alarm, Network disconnect , IP address conflict, Storage exception |
Protocols: | | | TCP/IP, UDP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour |
Security: | | | One-key reset, flash-prevention, dual streams, heartbeat, mirror, password protection, privacy mask, Watermark, IP address filtering, Anonymous access |
System Compatibility: | | | ONVIF (Profile S, Profile G), PSIA, CGI, ISAPI |
Interface | ||

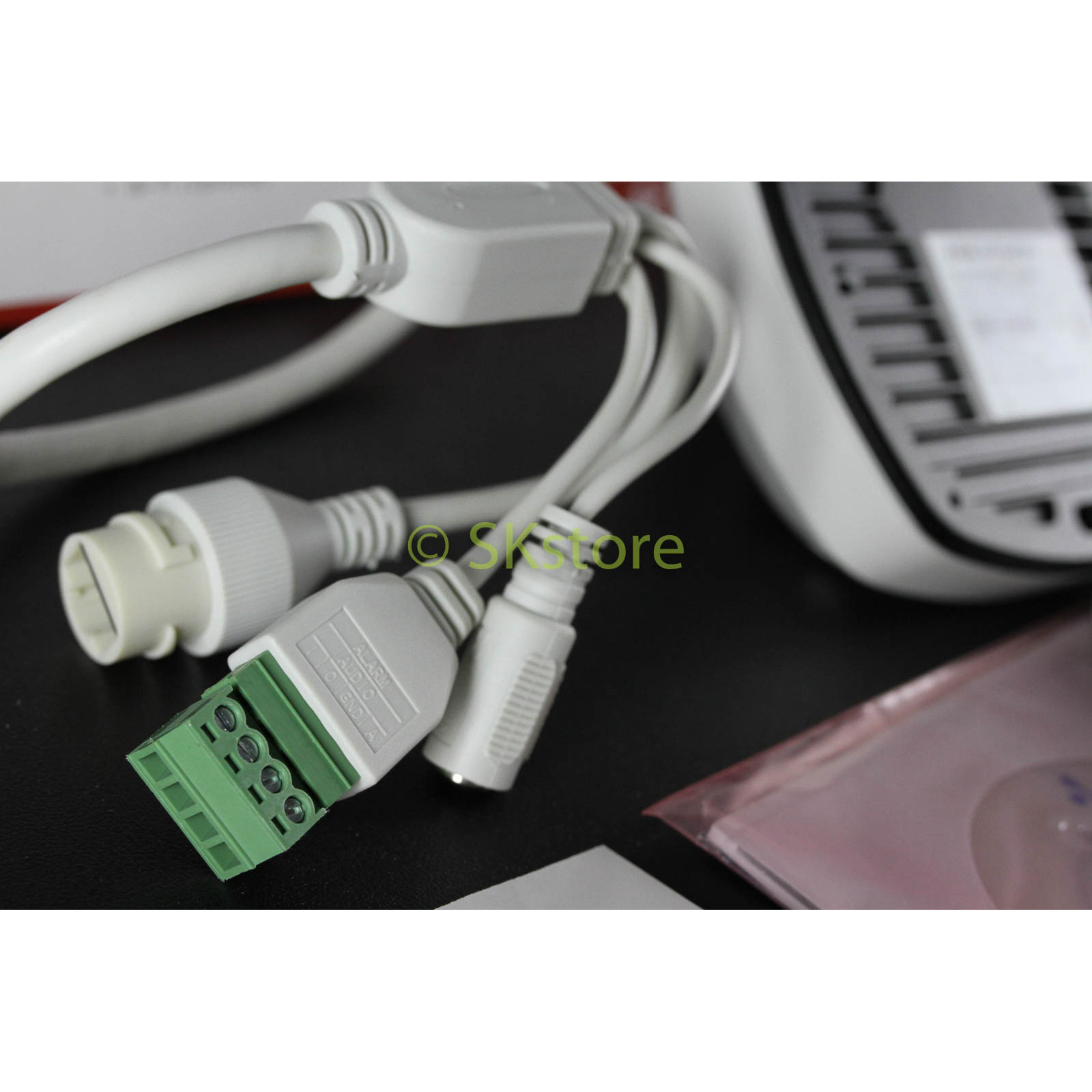

Audio: | | | 1-ch 3.5 mm audio in (Mic in/Line in)/out interface (-S model) |
Communication Interface: | | | 1 RJ45 10M / 100M Ethernet interface |
Alarm: | | | 1x alarm I/O *only for –S models |
On-board storage: | | | Built-in Micro SD/SDHC/SDXC slot, up to 128 GB |
Reset Button: | | | Yes |
Wi-Fi Specification (-W) | ||
Wireless Standards: | | | IEEE802.11b, 802.11g, 802.11n |
Frequency Range: | | | 2.4 GHz ~ 2.4835 GHz |
Channel Bandwidth: | | | 20/40MHz Support |
Modulation Mode: | | | 802.11b: CCK, QPSK, BPSK 802.11g/n: OFDM |
Security: | | | 64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK, WPS |
Transmit Power: | | | 11b: 17±1.5dBm @ 11Mbps 11g: 14±1.5dBm @ 54Mbps 11n: 12.5±1.5dBm |
Receive Sensitivity: | | | 11b: -90dBm @ 11Mbps (Typical) 11g: -75dBm @ 54Mpbs (Typical) 11n: -74dBm (Typical) |
Transmission Rate: | | | 11b: 11Mbps 11g: 54Mbps 11n: up to 150Mbps |
Wireless Range: | | | 50m(depend on environment) |
General | ||
Operating Conditions: | | | -30 °C ~ 60 °C (-22 °F ~ 140 °F) Humidity 95% or less (non-condensing) |
Power Supply: | | | 12 VDC ± 10%, PoE (802.3af) |
Power Consumption: | | | Max. 5W |
Impact Protection: | | | IK08 Protection Level |
Weather Proof: | | | IP66 |
IR Range: | | | 10 meters |
Dimensions: | | | 99.3×96.7×52.8 mm |
Weight: | | | 600 g (1.32 lbs) |
NOTE:: | | | "-W" series support Wi-Fi (802.11b/g/n) and the modules with Wi-Fi function don’t support the 802.1X protocol. |

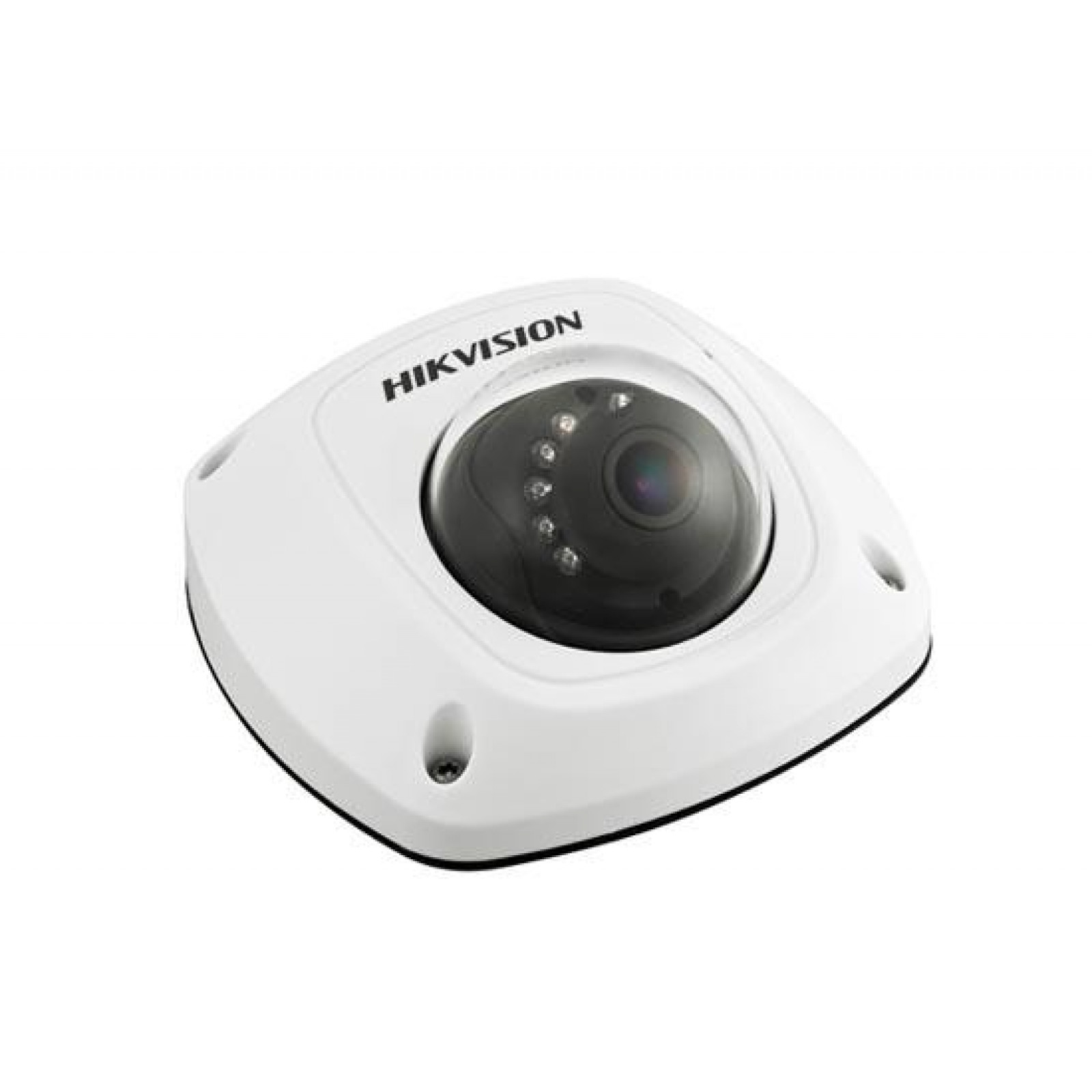

Hikvision 4MP WDR Mini Dome Network Camera with mic 4mm
- Brand: Hikvision
- Product Code: DS-2CD2542FWD-IS-4mm
- Availability: Out Of Stock
-
$325.00
Tags: DS-2CD2542FWD-IS
